Product Summary
The AD549JH is a monolithic electrometer operational amplifier with very low input bias current. Input offset voltage and input offset voltage drift are laser trimmed for precision performance. The part ultralow input current is achieved with Topgate JFET technology, a process development exclusive to Analog Devices, Inc. This technology allows fabrication of extremely low input current JFETs compatible with a standard junction isolated bipolar process. The 1015 Ω common-mode impedance, which results from the bootstrapped input stage, ensures that the input current is essentially independent of common-mode voltage.
Parametrics
Absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Internal Power Dissipation: 500 mW; (3)Input Voltage: ±18 V; (4)Output Short-Circuit Duration: Indefinite; (5)Differential Input Voltage: +VS and -VS; (6)Storage Temperature Range (H): -65℃ to +125℃; (7)Operating Temperature Range: 0℃ to +70℃; (8)Lead Temperature Range (Soldering, 60 sec): +300℃.
Features
Features: (1)Ultralow input-bias current: 250 fA max; (2)Input-bias current guaranteed over common-mode voltage range; (3)Low offset voltage: 1.00 mV max ; (4)Low offset drift: 20 μV/℃ max; (5)Low power: 700 μA max supply current; (6)Low input voltage noise: 4 μV p-p 0.1 Hz to 10 Hz; (7)MIL-STD-883B parts available.

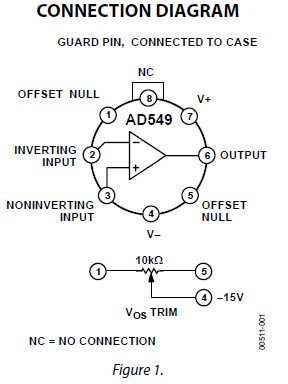

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

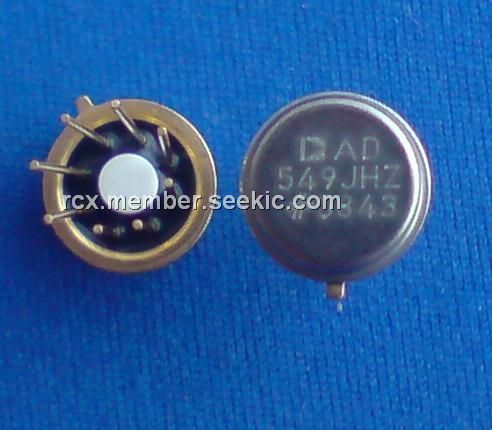

 AD549JH |
|
IC OPAMP GP 1MHZ LP 20MA TO99-8 |
Data Sheet |
|
|
||||||||||||||||
|
AD549JHZ |
|
IC OPAMP GP 1MHZ LP 20MA TO99-8 |
Data Sheet |
|
|
||||||||||||||||
