Product Summary

The AD2S83APZ is a monolithic 10-, 12-, 14- or 16-bit tracking resolver-to-digital converter. The converter allows users to select their own resolution and dynamic performance with external components. The AD2S83APZ allows users to select the resolution to be 10, 12, 14 or 16 bits and to track resolver signals rotating at up to 1040 revs per second (62,400 rpm) when set to 10-bit resolution. The AD2S83APZ inputs signals into a parallel natural binary digital word using a ratiometric tracking conversion method. This ensures high noise immunity and tolerance of long leads allowing the converter to be located remote from the resolver. The applications of the AD2S83APZ include DC and AC Servo Motor Control, Process Control, Numerical Control of Machine Tools, Robotics, Axis Control.

Parametrics

AD2S83APZ absolute maximum ratings: (1)+VS2: +13 V dc; (2)-VS2: –13 V dc; (3)+VL: +VS; (4)Reference: +13 V to –VS; (5)SIN: +13 V to –VS; (6)COS: +13 V to –VS; (7)Any Logical Input: –0.4 V dc to +VL dc; (8)Demodulator Input: +13 V to –VS; (9)Integrator Input: +13 V to –VS; (10)VCO Input: +13 V to –VS; (11)Power Dissipation: 800 mW; (12)Operating Temperature Industrial (AP, IP): -40℃ to +85℃; (13)Storage Temperature: -65℃ to +150℃; (14)Lead Temperature (Soldering, 10 sec): +300℃.

Features

AD2S83APZ features: (1)Tracking R/D Converter; (2)High Accuracy Velocity Output; (3)High Max Tracking Rate 1040 RPS (10 Bits); (4)44-Lead PLCC Package; (5)10-, 12-, 14- or 16-Bit Resolution Set by User; (6)Ratiometric Conversion; (7)Stabilized Velocity Reference; (8)Dynamic Performance Set by User; (9)Industrial Temperature Range.

Diagrams

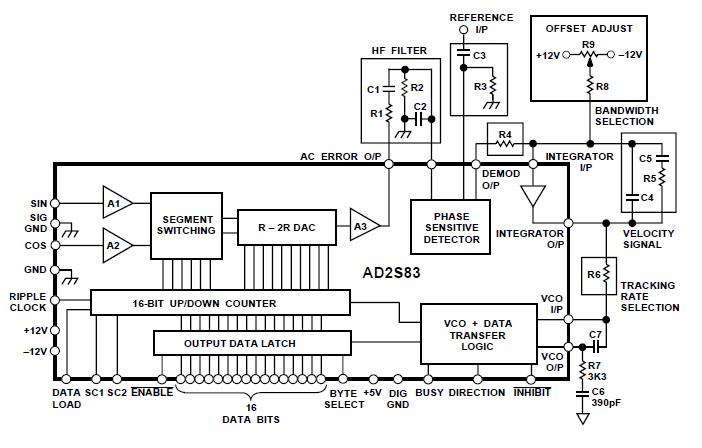

AD2S83APZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD2S83APZ
AD2S83APZ

IC R/D CONV TRACKING 44PLCC
Data Sheet
0-1: $82.53
1-10: $77.13
10-100: $71.92
AD2S83APZ-REEL
AD2S83APZ-REEL

IC CONV R/D MONO VAR RES 44PLCC
Data Sheet
0-500: $71.92
