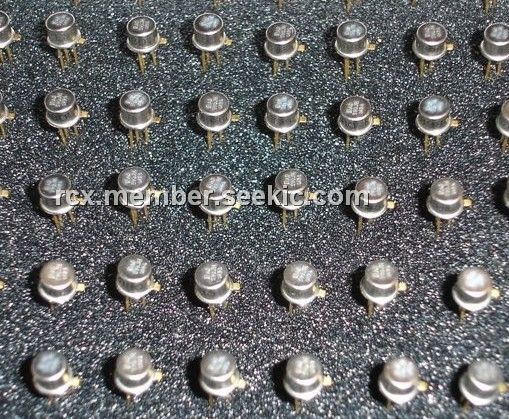

Product Summary

The AD590JH is a 2-terminal integrated circuit temperature trans-ducer that produces an output current proportional to absolute temperature. For supply voltages between 4 V and 30 V, the device acts as a high impedance, constant current regulator passing 1 μA/K. The AD590JH should be used in any temperature-sensing application below 150℃ in which conventional electrical temperature sensors are currently employed. The inherent low cost of a monolithic integrated circuit combined with the elimination of support circuitry makes the AD590JH an attractive alternative for many temperature measurement situations.

Parametrics

Absolute maximum ratings: (1)Forward Voltage ( E+ or E-): 44 V; (2)Reverse Voltage (E+ to E-): -20 V; (3)Breakdown Voltage (Case E+ or E-): ±200 V; (4)Rated Performance Temperature Range: -55℃ to +150℃; (5)Storage Temperature Range: -65℃ to +155℃; (6)Lead Temperature (Soldering, 10 sec): 300℃.

Features

Features: (1)Linear current output: 1 μA/K; (2)Wide temperature range: -55℃ to +150℃; (3)Probe-compatible ceramic sensor package; (4)2-terminal device: voltage in/current out; (5)Wide power supply range: 4 V to 30 V; (6)Sensor isolation from case; (7)Low cost.

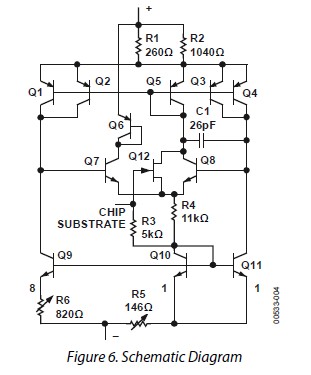

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD590JH
AD590JH


IC TEMP TRANSDUCER 2-TERM TO52-3

Data Sheet

0-1: $5.72
1-10: $5.15
10-25: $4.69
25-100: $4.24
100-250: $3.89
250-500: $3.55
500-1000: $3.09
1000-2500: $3.05
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD590
AD590

Other


Data Sheet

Negotiable
AD590IH
AD590IH

Other


Data Sheet

Negotiable
AD590JF
AD590JF


IC TEMP TRANSDUCER 2-TERM 2-CQFP

Data Sheet

0-1: $11.12
1-10: $10.29
10-100: $8.79
100-250: $8.06
250-500: $7.68
500-1000: $7.42
AD590JH
AD590JH


IC TEMP TRANSDUCER 2-TERM TO52-3

Data Sheet

0-1: $5.72
1-10: $5.15
10-25: $4.69
25-100: $4.24
100-250: $3.89
250-500: $3.55
500-1000: $3.09
1000-2500: $3.05
AD590JR
AD590JR


IC TEMP TRANSDUCER 2-TERM 8-SOIC

Data Sheet

0-98: $3.89
AD590JR-REEL
AD590JR-REEL

Analog Devices Inc.

IC TEMP TRANSDUCER 2-TERM 8-SOIC

Data Sheet

Negotiable
