Product Summary

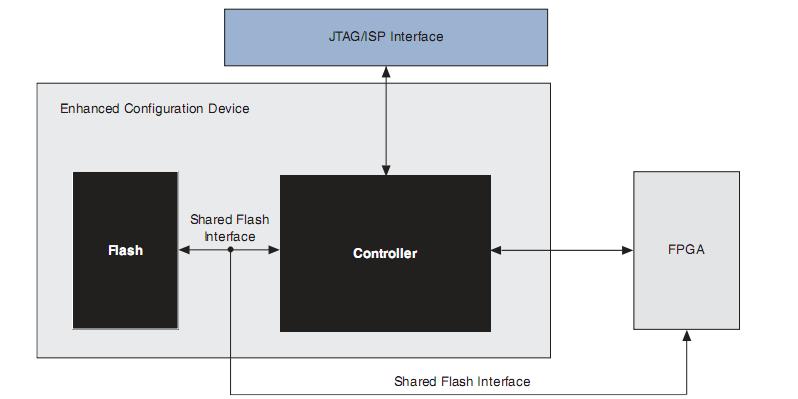

The EP1K100QC208-3N is a single-device, high-speed, advanced configuration solution for very high-density FPGA. It is divided into two major blocks: a configuration controller and a flash memory.
Parametrics
EP1K100QC208-3N absolute maximum ratings: (1)Supply voltage With respect to ground:-0.2V to 4.6V; (2)DC input voltage With respect to ground:-0.5V to 3.6V; (3)DC VCC or ground current:100mA; (4)DC output current, per pin:-25mA to 25mA; (5)Power dissipation:360mW; (6)Storage temperature No bias:-65℃ to 150℃; (7)Ambient temperature Under bias:-65℃ to 135℃; (8)Junction temperature Under bias:135℃.
Features
EP1K100QC208-3N features: (1)Supports ISP via Jam Standard Test and Programming Language(STAPL); (2)Supports JTAG boundary scan; (3)nINIT_CONF pin allows private JTAG instruction to start FPGA configuration; (4)Internal pull-up resistor on nINIT_CONF always enabled; (5)User programmable weak internal pull-up resistors on nCS and OE pins; (6)Internal weak pull-up resistors on external flash interface address and control lines, bus hold on data lines; (7)Standby mode with reduced power consumption; (8)Supports true n-bit concurrent configuration (n = 1, 2, 4, and 8) of Altera FPGAs; (9)Pin-selectable 2-ms or 100-ms power-on reset (POR) time ; (10)Configuration clock supports programmable input source and frequency synthesis.
