Product Summary
The PCI 9052 is a PCI Bus Interface/Controller. It brings PLX’s industry leading experience in the world of PCI designs to you in a way that is simple and convenient to use. The PCI 9052 is the ideal choice for implementation of your 32-bit, 33MHz PCI bus target (slave) I/O Accelerator designs for you 32-bit 40MHz, Industry Standard Architecture (ISA) local bus, or generic designs.
Parametrics
PCI9052 absolute maximum ratings: (1)Storage temperature: -65 ℃ to +150 ℃; (2)Ambient temperature with power applied: -55 ℃ to +125 ℃; (3)Supply voltage to ground: -0.5 V to +7.0 V; (4)Input voltage (VIN): VSS -0.5 V to VDD +0.5 V; (5)Output voltage (VOUT): VSS -0.5 V to VDD +0.5 V.
Features
PCI9052 Features: (1)Zero wait state burst operation: PCI unlimited bursts transfers at up to 132MB/s; (2)Direct slave data transfers: Access 8-, 16-, and 32-bit local; (3)bus devices; (4)Deferred reads, read ahead, posted writes, programmable read; (5)prefetch counter; (6)Move from 8MHz, 5MB/s ISA designs to leading 33MHz, 132MB/s PCI; (7)Low power consumption.

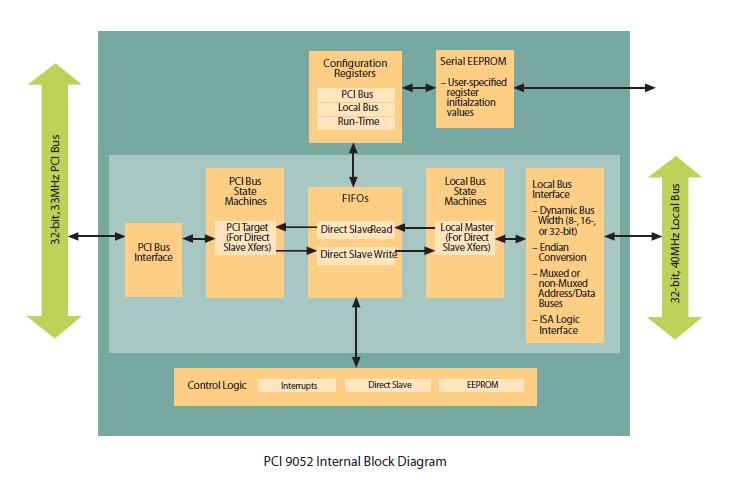

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PCI9052 |
PLX Technology |
Peripheral Drivers & Components (PCIs) 32-bit 33MHz PCI Target |
Data Sheet |
|
|
||||||||||
|
PCI9052G |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
|
PCI9052-G |
PLX Technology |
Peripheral Drivers & Components (PCIs) 32-bit 33MHz PCI Target |
Data Sheet |
|
|
||||||||||
|
PCI9052RDK-LITE |
PLX Technology |
Interface Development Tools PCI9052 LITE |
Data Sheet |
|
|
||||||||||
