Product Summary
The K9F4G08U0A-PCB0 is a 4G-bit NAND Flash Memory with spare 128M-bit. Its NAND cell provides the most costeffective solution for the solid state application market.
Parametrics
Absolute maximum ratings: (1)Voltage on any pin relative to VSS: -0.6 to +4.6 V; (2)Temperature Under Bias: -10 to +125 ℃; (3)Storage Temperature: -65 to +150 ℃; (4)Short Circuit Current: 5 mA.
Features
Features: (1)Voltage Supply: 2.70V ~ 3.60V; (2)Organization: Memory Cell Array : (512M + 16M) x 8bit, Data Register : (2K + 64) x 8bit; (3)Automatic Program and Erase: Page Program : (2K + 64)Byte, Block Erase : (128K + 4K)Byte; (4)Page Read Operation: Page Size : (2K + 64)Byte, Random Read : 25μs(Max.), Serial Access : 25ns(Min.).

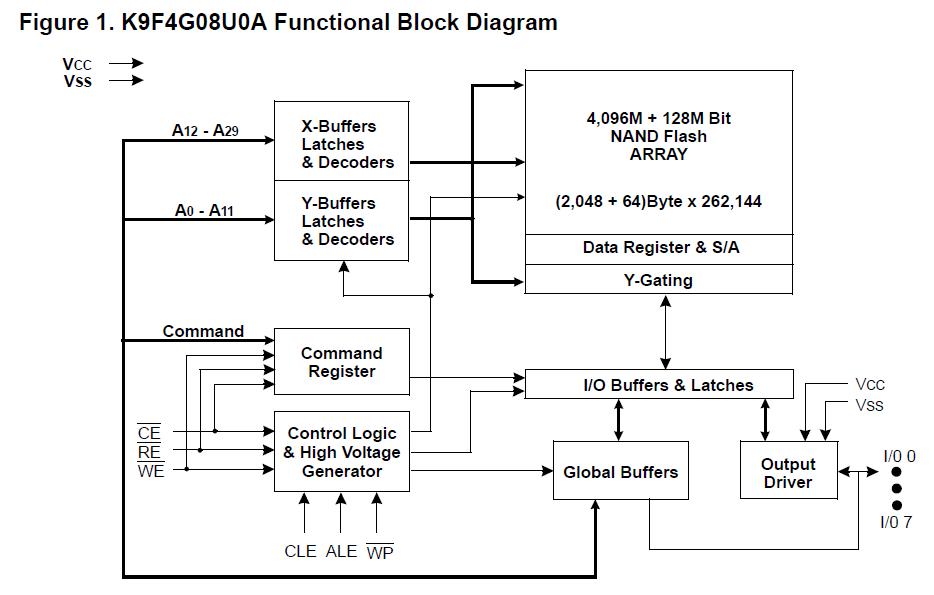

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 K9F4G08U0A-PCB0 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
K9F4008W0A-TCB0 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
K9F4008W0A-TIB0 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
K9F4G08U0A-PCB0 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
K9F4G08U0A-PIB0 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
K9F4G08U0M |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
K9F4G08UOA-PCBO |
Other |
|
Data Sheet |
Negotiable |
|
||||
