Product Summary

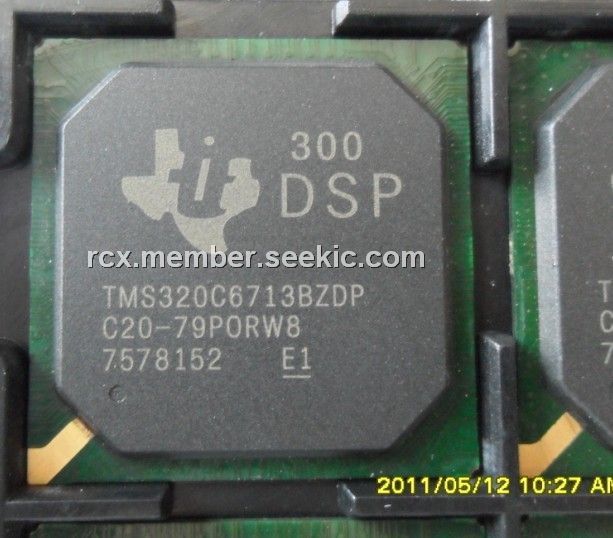

The TMS320C6713BZDP300 is a floating-point digital signal processor.
Parametrics
Absolute maximum ratings: (1)Supply voltage range, CVDD:-0.3 V to 1.8 V; (2)Supply voltage range, DVDD:-0.3 V to 4 V; (3)Input voltage range:-0.3 V to DVDD + 0.5 V; (4)Output voltage range:-0.3 V to DVDD + 0.5 V; (5)Operating case temperature ranges:default:0℃ to 90℃, A version: -40℃ to 105℃; (6)Storage temperature range:-65℃ to 150℃.
Features
Features: (1)Eight 32-Bit Instructions/Cycle; (2)32/64-Bit Data Word; (3)300-, 225-, 200-MHz (GDP and ZDP), and 225-, 200-, 167-MHz (PYP) Clock Rates; (4)3.3-, 4.4-, 5-, 6-Instruction Cycle Times; (5)2400/1800, 1800/1350, 1600/1200, and 1336/1000 MIPS/MFLOPS; (6)Rich Peripheral Set, Optimized for Audio; (7)Highly Optimized C/C++ Compiler; (8)Extended Temperature Devices Available; (9)Native Instructions for IEEE 754; (10)Single- and Double-Precision; (11)Byte-Addressable (8-, 16-, 32-Bit Data); (12)8-Bit Overflow Protection; (13)Saturation; Bit-Field Extract, Set, Clear;Bit-Counting; Normalization.

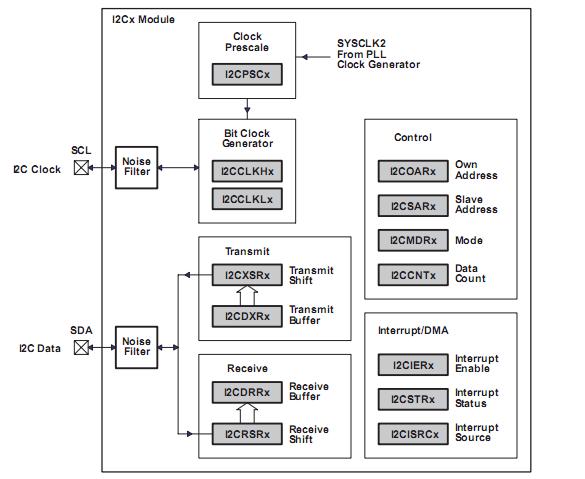

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TMS320C6713BZDP300 |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) Floating Point DSP |
Data Sheet |
|
|
||||||||||||
