Product Summary

The XCS05XL-4VQG100C is a Spartan and Spartan-XL Field Programmable Gate Array. It is a high-volume production FPGA solution that delivers all the key requirements for ASIC replacement up to 40,000 gates.

Parametrics

Absolute maximum ratings: (1)Supply voltage relative to GND: –0.5 to 4.0 V; (2)Input voltage relative to GND: 5V Tolerant I/O Checked(2, 3): –0.5 to 5.5 V, Not 5V Tolerant I/Os(4, 5): –0.5 to VCC + 0.5 V; (3)Voltage applied to 3-state output: 5V Tolerant I/O Checked(2, 3): –0.5 to 5.5 V, Not 5V Tolerant I/Os(4, 5): –0.5 to VCC + 0.5 V; (4)Storage temperature (ambient): –65 to +150 ℃; (5)Junction temperature Plastic packages: +125 ℃.

Features

Features: (1)First ASIC replacement FPGA for high-volume production with on-chip RAM; (2)Density up to 1862 logic cells or 40,000 system gates; (3)Streamlined feature set based on XC4000 architecture; (4)System performance beyond 80 MHz; (5)Broad set of AllianceCORE?and LogiCORE predefined solutions available; (6)Unlimited reprogrammability; (7)Low cost.

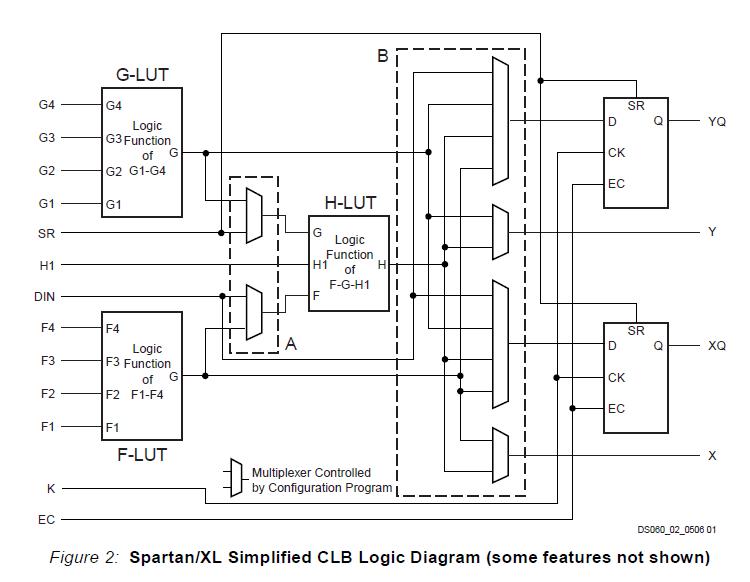

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

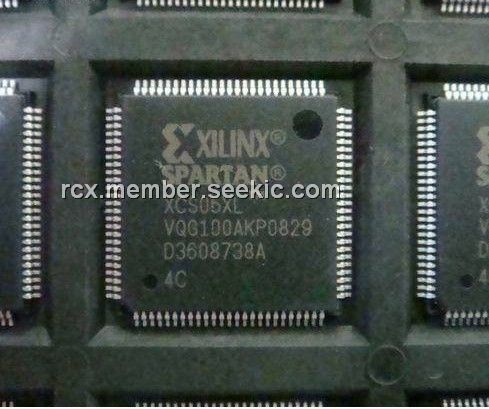

XCS05XL-4VQG100C
XCS05XL-4VQG100C


IC SPARTAN-XL FPGA 5K 100-VQFP

Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
XCS05 and XCS05XL
XCS05 and XCS05XL

Other


Data Sheet

Negotiable
XCS05-3PC84C
XCS05-3PC84C


IC FPGA 5V C-TEMP 84-PLCC

Data Sheet

Negotiable
XCS05-3VQ100C
XCS05-3VQ100C


IC FPGA 5V C-TEMP 100-VQFP

Data Sheet

0-90: $6.96
XCS05-3VQ100I
XCS05-3VQ100I


IC FPGA 5V I-TEMP 100-VQFP

Data Sheet

Negotiable
XCS05-4PC84C
XCS05-4PC84C


IC FPGA 5V C-TEMP 84-PLCC

Data Sheet

Negotiable
XCS05-4VQ100C
XCS05-4VQ100C


IC FPGA 5V C-TEMP 100-VQFP

Data Sheet

Negotiable
