Product Summary

The TMS320VC5416PGE160 is designed as the fixed-point digital signal processor. The TMS320VC5416PGE160 is based on an advanced modified Harvard architecture that has one program memory bus and three data memory buses.This processor provides an arithmetic logic unit (ALU) with a high degree of parallelism,application-specific hardware logic, on-chip memory,and additional on-chip peripherals.The basis of the operational flexibility and speed of this DSP is a highly specialized instruction set.

Parametrics

Absolute maximum ratings: (1)supply voltage I/O range:-0.3 V to 4.0 V;(2)supply voltage core range:-0.3 V to 2.0 V;(3)input voltage range:-0.3 V to 4.5 V;(4)output voltage range:-0.3 V to 4.5 V;(5)operating case temperature range:-40℃ to 100℃;(6)storage temperature range:-55℃ to 150℃.

Features

Features: (1)instructions with two-or three-operand reads;(2)instructions with a 32-Bit long word operand;(3)block-memory-move instructions for better program and data management;(4)single-instruction-repeat and block-repeat operations for program code;(5)enhanced external parallel interface (XIO2);(6)16K X 16-bit on-chip ROM configured for program memory;(7)arithmetic instructions with parallel store and parallel load;(8)conditional store instructions;(9)fast return from interrupt;(10)compare,select,and store unit (CSSU) for the add/compare selection of the viterbi operator.

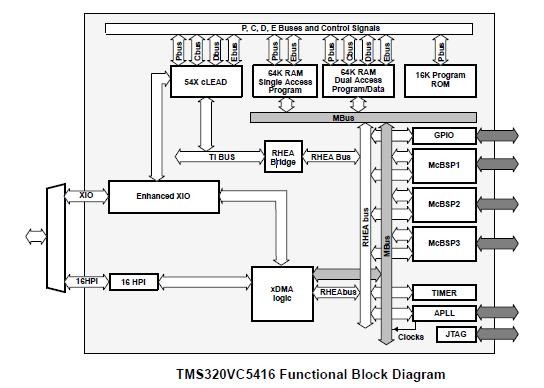

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

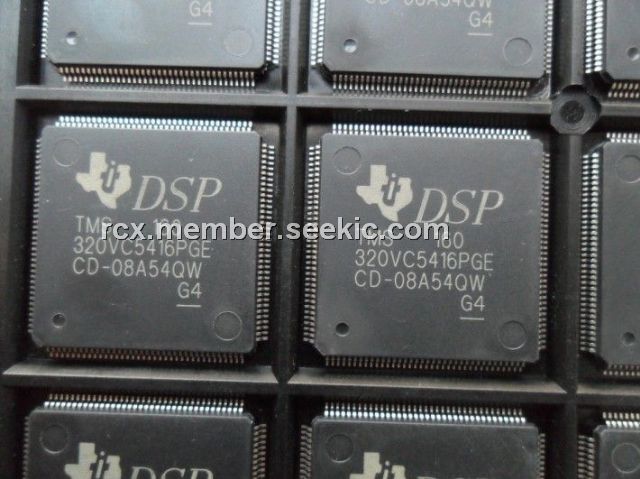

TMS320VC5416PGE160
TMS320VC5416PGE160

Texas Instruments

Digital Signal Processors & Controllers (DSP, DSC) Dig Sig Proc

Data Sheet

0-1: $24.17
1-25: $23.50
25-100: $22.84
100-250: $22.35
