Product Summary
The EPC2LC20 is a Configuration Device which is designed for SRAM-Based LUT Devices.
Parametrics
EPC2LC20 absolute maximum ratings: (1)Supply voltage: -0.2 to 7.0 V With respect to ground; (2)DC input voltage: -0.2 to 7.0 V With respect to ground; (3)DC VCC or ground current: 50 mA; (4)DC output current, per pin: -25 to 25 mA; (5)Power dissipation: 250 mW; (6)Storage temperature: -65 to 150℃; (7)Ambient temperature: -65 to 135℃; (8)Junction temperature: 135℃.
Features
EPC2LC20 features: (1)Serial device family for configuring APEXTM II, APEX 20K (including APEX 20K, APEX 20KC, and APEX 20KE), MercuryTM, ACEXR 1K, and FLEXR (FLEX 6000, FLEX 10KE, and FLEX 10KA) devices; (2)Easy-to-use 4-pin interface to APEX II, APEX 20K, Mercury, ACEX, and FLEX devices; (3)Low current during configuration and near-zero standby current; (4)5.0-V and 3.3-V operation; (5)Software design support with the AlteraR QuartusR II and; (6)MAX+PLUSR II development systems for Windows-based PCs as well as Sun SPARCstation, and HP 9000 Series 700/800.

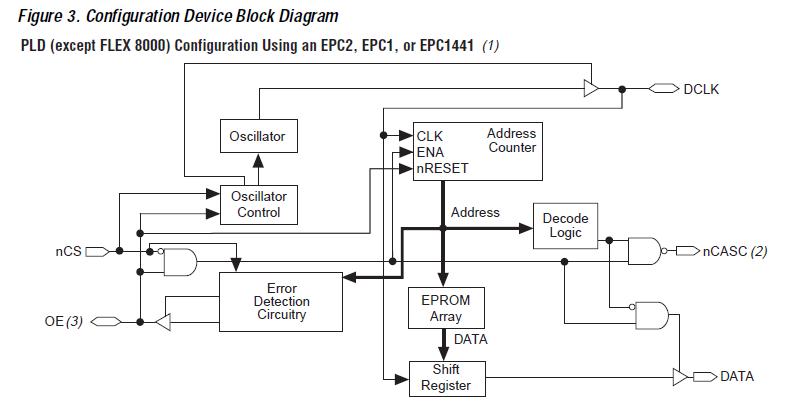

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
EPC2LC20 |
Altera |
IC CONFIG DEVICE 1.6MBIT 20-PLCC |
Data Sheet |
|
|
|||||||
EPC2LC20N |
Altera |
IC CONFIG DEVICE 1.6MBIT 20-PLCC |
Data Sheet |
|
|
