Product Summary
The GAL16V8D-25LJN is a high performance E2CMOS PLD generic array logic.
Parametrics
Absolute maximum ratings: (1)Supply voltage VCC:–0.5V to +7V; (2)Input voltage applied:–2.5V to VCC +1.0V; (3)Off-state output voltage applied:–2.5V to VCC +1.0V; (4)Storage Temperature:–65℃ to 150℃; (5)Ambient Temperature with Power Applied:–55℃ to 125℃.
Features
Features: (1)3.5 ns Maximum Propagation Delay; (2)Fmax = 250 MHz; (3)3.0 ns Maximum from Clock Input to Data Output; (4)UltraMOS Advanced CMOS Technology; (5)Reconfigurable Logic; (6)Reprogrammable Cells; (7)100% Tested/100% Yields; (8)High Speed Electrical Erasure (<100ms); (9)20 Year Data Retention; (10)Maximum Flexibility for Complex Logic Designs; (11)Programmable Output Polarity; (12)Also Emulates 20-pin PAL Devices with Full Function/Fuse Map/Parametric Compatibility; (13)DMA Control; (14)State Machine Control; (15)High Speed Graphics Processing; (16)Standard Logic Speed Upgrade.

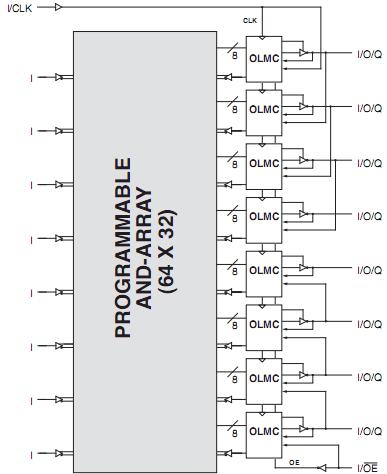

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
GAL16V8D-25LJN |
Lattice |
SPLD - Simple Programmable Logic Devices 16 Input 8 Output 5V Low Power 25ns |
Data Sheet |
|
|
|||||||
